Feedback/NTLM authentication fails with Plugin error

NTLM authentication fails with Plugin error

Matthias ·7 months ago·#YF906
Released to BetaBug

I’m trying to connect to an internal application that uses NTLM authentication. I know the endpoint works as the configuration works fine through postman (using NTLM authentication).

Using Yaak, i get the following error (both on windows, and when starting yaak through WSL)

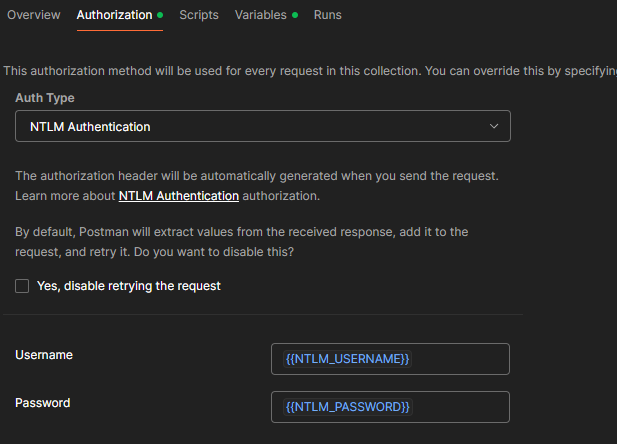

The following pictures shows the configuration used for postman: image

I’ve also tried using CURL for this request - where i can see that the www-authenticate header is included in the response (if i send no auth, obviously).

Is there anything else i can do to assist in finding the cause for this?

edit aside from this - awesome API client!

Windows2026.2.1

Comments (16)

Sign in to leave a comment.

Gregory SchierReleased to BetaFeatured
Matthias OP

Unfortunately, i seem to still encounter this with 2026.3.0-beta.5

The error now changed slightly (which is obvious given the changes made) - but it’s still not actually authenticating (based on the code, it’s not getting to a point where credential correctnes is relevant just yet).

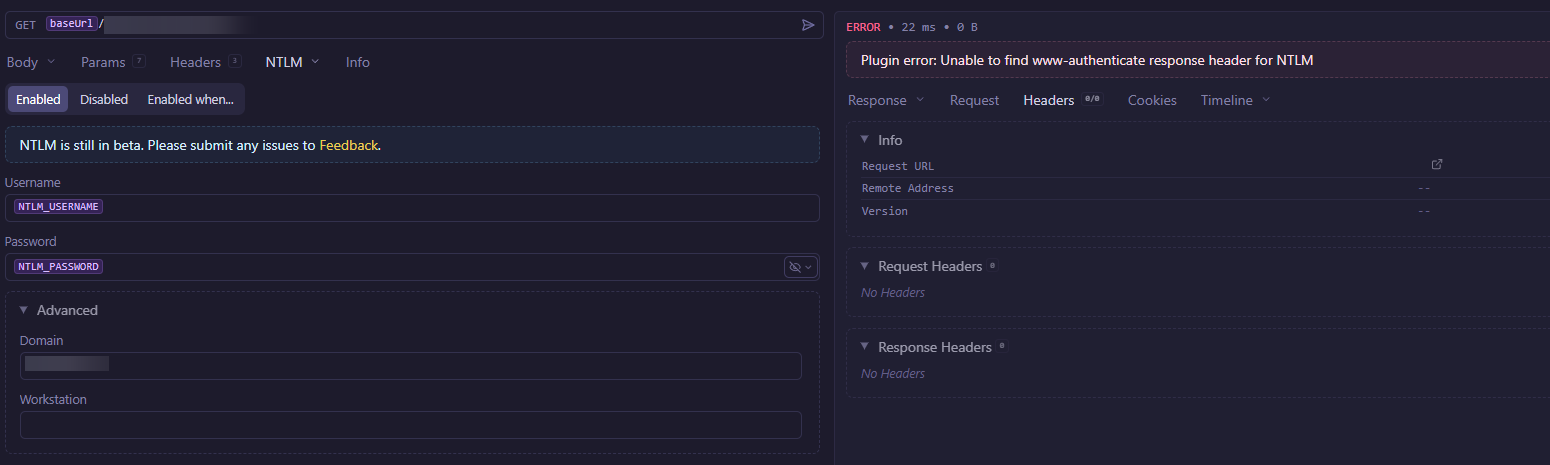

with 2026.3.0-beta.5: image

Matthias OP

Is there any way for me to get more detailed logs somehow?

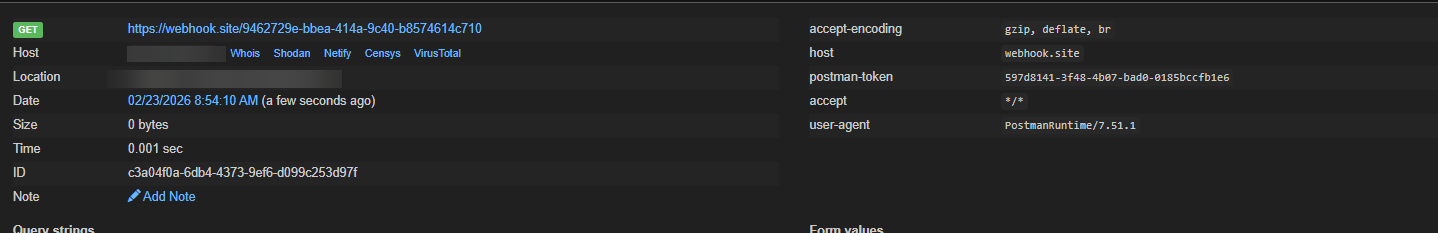

Based on the code (and some tests with webhook.site) - it seems like the initial request already contains a “authorization: NTLM ”.

https://github.com/mountain-loop/yaak/blob/1e7e1232dac2748aba10df5ee8f574151d8451ae/plugins/auth-ntlm/src/index.ts#L70


If i compare this with postman (same ntlm config) - it’s not attaching the token in the initial request (querying this against the API in question WOULD result in a www-authenticate" header).


Now i’m not 100% familiar with details of the ntlm protocol - but it seems like Yaak is sending the authentication initially - so (assuming it’s a correct hash?) - would we still expect a “www-authenticate” to be in the response (I don’t think so but I’m not sure)?

Gregory Schier

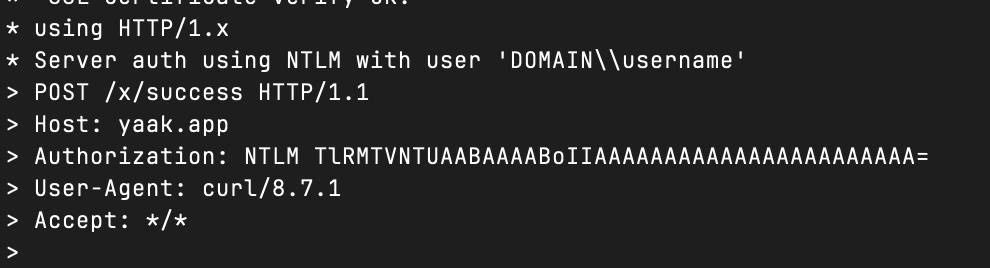

Okay after some digging into how Curl handles it, I found there are two different strategies that can be used.

Curl’s default is what Yaak does now (sends the Authorization: NTLM ... header immediately)

curl --ntlm -u 'DOMAIN\\username:password' https://yaak.app/x/echo-full

The second method is enabling the --negotiate flag, which will change the behavior to what Postman does (send regular request and expect a WWW-Authenticate challenge header).

curl --ntlm --negotiate -u 'DOMAIN\\username:password' https://yaak.app/x/echo-full

It seems like the plain --ntlm is supposed to work. Can you let me know the WWW-Authenticate header formats returned by executing each of those on your server? Apparently some servers can also respond with WWW-Authenticate: Negotiate ... as opposed to WWW-Authenticate: NTLM ... which Yaak currently matches on.

Matthias OP

Thanks a lot for looking at this further!

using curl --ntlm --negotiate <...> - i can’t get this endpoint to work (like - not at all). The returned headers are both Negotiate and NTLM - but Negotiate doesn’t work as i’m on linux and don’t have a kerberos ticket for that user available.

< www-authenticate: Negotiate
< www-authenticate: NTLM
[...]

* gss_init_sec_context() failed: No credentials were supplied, or the credentials were unavailable or inaccessible. SPNEGO cannot find mechanisms to negotiate.
< www-authenticate: Negotiate
< www-authenticate: NTLM

Without negotiate:

> GET /endpoint/some HTTP/1.1
> Host: server.domain:8002
> Authorization: NTLM TlRMTVNxxxxxxAAAAAAAAAAAAAAAAAAA=
> User-Agent: curl/8.5.0
> Accept: */*
>
* TLSv1.3 (IN), TLS handshake, Newsession Ticket (4):
< HTTP/1.1 401 Unauthorized
< Content-Type: text/html; charset=us-ascii
< Server: Microsoft-HTTPAPI/2.0
< WWW-Authenticate: NTLM TlRMTVNTUAACAAAACwALADgAAAAGgokCyusU9wzFYAIAAAAAAAAAAMYAxgBDAAAACgB8TwAAAA9SV...
< Date: Fri, 27 Feb 2026 08:42:36 GMT
< Content-Length: 341
<
* Ignoring the response-body
* Connection #0 to host amssvc001.rubnergroup.local left intact
* Issue another request to this URL: 'https://server.domain:8002/endpoint/some'
* Found bundle for host: 0x5a377a6bac60 [serially]
* Re-using existing connection with host amssvc001.rubnergroup.local
* Server auth using NTLM with user 'rubnergroup\amsservice'
> GET /endpoint/some HTTP/1.1
> Host: amssvc001.rubnergroup.local:8002
> Authorization: NTLM TlRMTVNTUAADAAAAGAAYAEAAAAD2APYAWAAAAAsACwBOAQAACgAKAFkBAAALAAsAYwEAAAAAAAAAAAAA
BoKJAqoVnIFPZ3x0jzrKOowKYlQZUO59mK5wGEsAMnzxLoGP1a6rV/QVFX0BAQAAAAAAAACmrgXFp9wBGVDufZiucBgAAAAAAgAWAF...
> User-Agent: curl/8.5.0
> Accept: */*
>
< HTTP/1.1 200 OK
< Transfer-Encoding: chunked
< Content-Type: application/json; odata.metadata=minimal; odata.streaming=true; charset=utf-8
< Content-Language: de-DE
< Server: Kestrel
< Set-Cookie: SessionId=371cbe14-2861-4eee-925b-cf150e5f12fe; path=/
< Strict-Transport-Security: max-age=2592000
< OData-Version: 4.0
< Persistent-Auth: true
< X-Powered-By: ASP.NET
< Date: Fri, 27 Feb 2026 08:42:36 GMT
<
* Connection #0 to host server.domain left intact

now to be fair (and i’m not sure if this isn’t somehow related) - i did append --http1.1 to this call. without it - there’s an additional initial request where curl downgrades with the following “comment”:

* HTTP/2 stream 1 was not closed cleanly: HTTP_1_1_REQUIRED (err 13)
* Downgrades to HTTP/1.1
Empty reply from server
* Connection #0 to host server.domain left intact
* Issue another request to this URL: 'https://server.domain:8002/endpoint/some'

there’s essentially no repsonse (also no response header) in this initial request other than “handshake failed”.

Apparently the server can’t properly do http2 (yaak works without authentication - but probably becaues i get a plain 401 without further “discussion”?) Maybe there’s a way / setting to temporarily disable attempting http2 (which would replicate hte --http1.1 flag i pass to curl?

Gregory SchierNeeds Reproduction

Are there any redirects in the response chain for this? If so, do you have redirects disabled in Yaak’s settings?

Any chance you have a public endpoint or project that I can run, to reproduce this with?

Matthias OP

I just tried with and without redirects disabled - but it didn’t change behavior.

Unfortunately, it’s a private endpoint (from an ERP system, no less) which we can’t expose.

I’ve tried a curl request for this with -v

curl -X GET 'https://server001.company.local:8002/some/route' \
  --header 'User-Agent: yaak' \
  --header 'Accept: application/json' \
  -v

and got the following response. as far as i can tell, there’s no redirect or similar involved.

I do clearly receive 2 www-authenticate response headers - so i don’t really get or grasp what the error in yaak is trying to tell me.

Note: Unnecessary use of -X or --request, GET is already inferred.
* Host server001.company.local:8002 was resolved.
* IPv6: (none)
* IPv4: 10.0.247.33
*   Trying 10.0.247.33:8002...
* Connected to server001.company.local (10.0.247.33) port 8002
* ALPN: curl offers h2,http/1.1
* TLSv1.3 (OUT), TLS handshake, Client hello (1):
*  CAfile: /etc/ssl/certs/ca-certificates.crt
*  CApath: /etc/ssl/certs
* TLSv1.3 (IN), TLS handshake, Server hello (2):
* TLSv1.3 (IN), TLS handshake, Encrypted Extensions (8):
* TLSv1.3 (IN), TLS handshake, Certificate (11):
* TLSv1.3 (IN), TLS handshake, CERT verify (15):
* TLSv1.3 (IN), TLS handshake, Finished (20):
* TLSv1.3 (OUT), TLS change cipher, Change cipher spec (1):
* TLSv1.3 (OUT), TLS handshake, Finished (20):
* SSL connection using TLSv1.3 / TLS_AES_256_GCM_SHA384 / X25519 / RSASSA-PSS
* ALPN: server accepted h2
* Server certificate:
*  subject: C=IT; ST=ST; L=Location; O=company; OU=IT; CN=server001.company.local
*  start date: Jul 31 11:45:31 2025 GMT
*  expire date: Jul 30 11:45:31 2030 GMT
*  subjectAltName: host "server001.company.local" matched cert's "server001.company.local"
*  issuer: DC=local; DC=company; CN=company-CA
*  SSL certificate verify ok.
*   Certificate level 0: Public key type RSA (2048/112 Bits/secBits), signed using sha256WithRSAEncryption
*   Certificate level 1: Public key type RSA (2048/112 Bits/secBits), signed using sha256WithRSAEncryption
* using HTTP/2
* [HTTP/2] [1] OPENED stream for https://server001.company.local:8002/some/route
* [HTTP/2] [1] [:method: GET]
* [HTTP/2] [1] [:scheme: https]
* [HTTP/2] [1] [:authority: server001.company.local:8002]
* [HTTP/2] [1] [:path: /some/route]
* [HTTP/2] [1] [user-agent: yaak]
* [HTTP/2] [1] [accept: application/json]
> GET /some/route HTTP/2
> Host: server001.company.local:8002
> User-Agent: yaak
> Accept: application/json
>
* TLSv1.3 (IN), TLS handshake, Newsession Ticket (4):
< HTTP/2 401
< cache-control: no-cache, no-store, must-revalidate
< pragma: no-cache
< content-length: 142
< content-type: application/problem+json; charset=utf-8
< expires: 0
< server: Kestrel
< strict-transport-security: max-age=2592000
< www-authenticate: Negotiate
< www-authenticate: NTLM
< x-powered-by: ASP.NET
< date: Fri, 20 Feb 2026 07:32:16 GMT
<
* Connection #0 to host server001.company.local left intact
{"type":"https://httpstatuses.io/401","title":"Unauthorized","status":401,"traceId":"00-34384660a863959590f153e52c1f08c4-0c64e6d2290979a6-00"}
Gregory Schier

Thanks for the help! Yaak wasn’t properly handling the multiple www-authenticate headers. Just closed a PR to fix that https://github.com/mountain-loop/yaak/pull/402

SoftExpert

I just tested with 2026.3.0-beta5 on Windows 2025 with IIS - it still does not work and there are no recorded traces, as we can see in the following screenshot:


In order to facilitate analysis - is it possible to collect a detailed trace of everything exchanged between Yaak and the web server ?

Gregory Schier

You can use something like Proxyman for that

SoftExpert

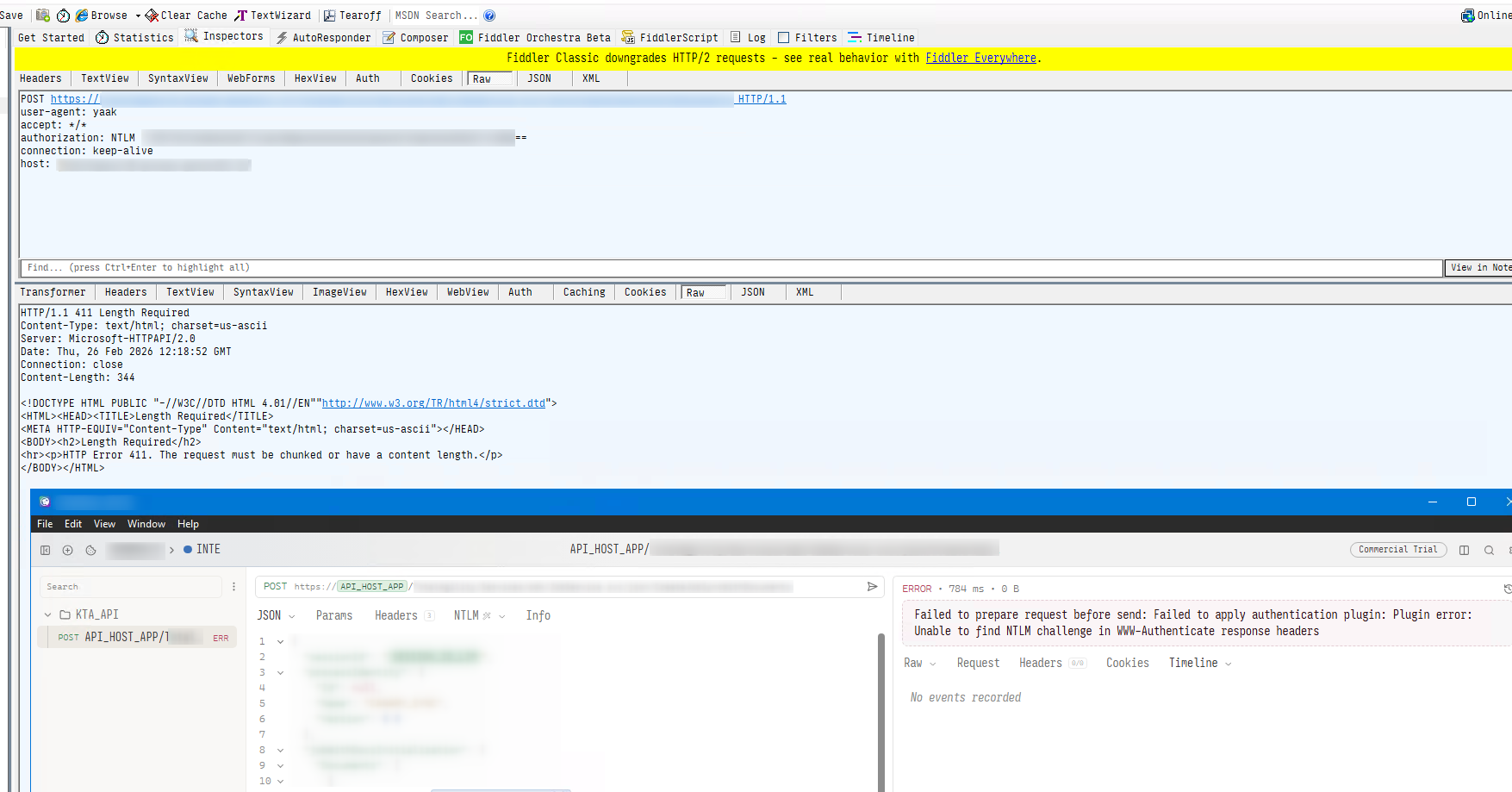

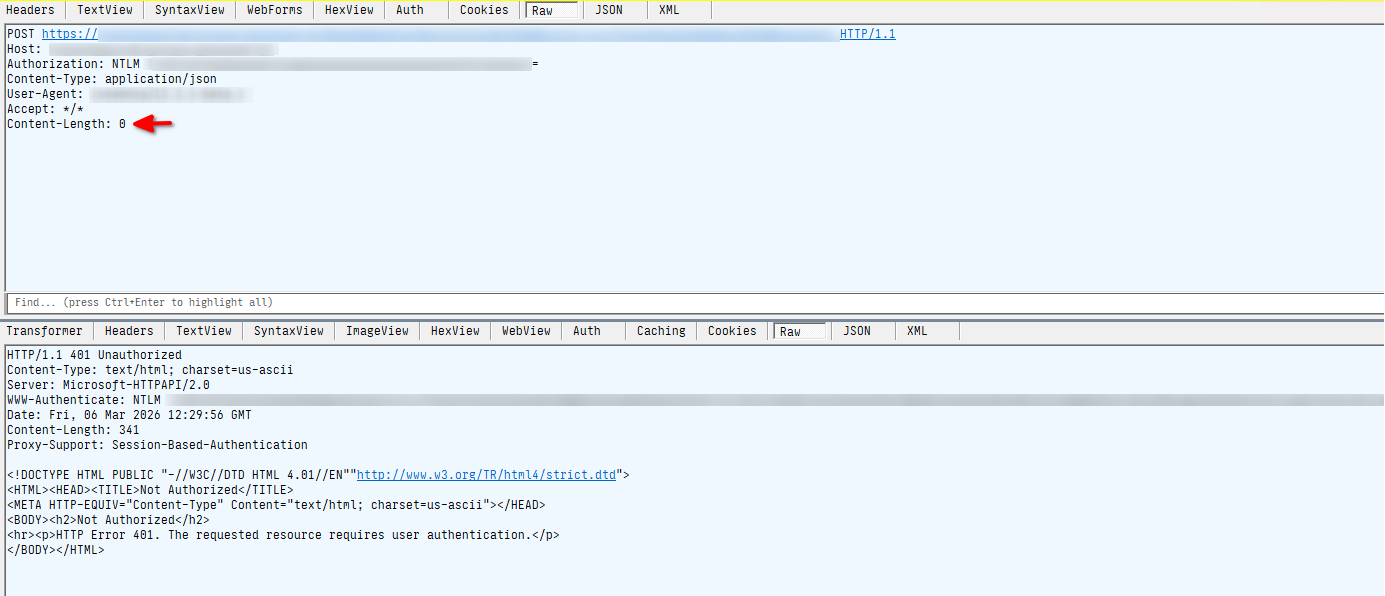

I got better results with Fiddler; here is the only request/response sequence that is recorded so far; I hope it can help …

Gregory Schier

Hmm, that’s an odd one. Curl doesn’t sent content-length either though.

SoftExpert

Maybe the key is in the error message -> “the request must be chunked” …

Gregory Schier

I don’t see Transfer-Encoding: chunked in the curl either 🤔

SoftExpert

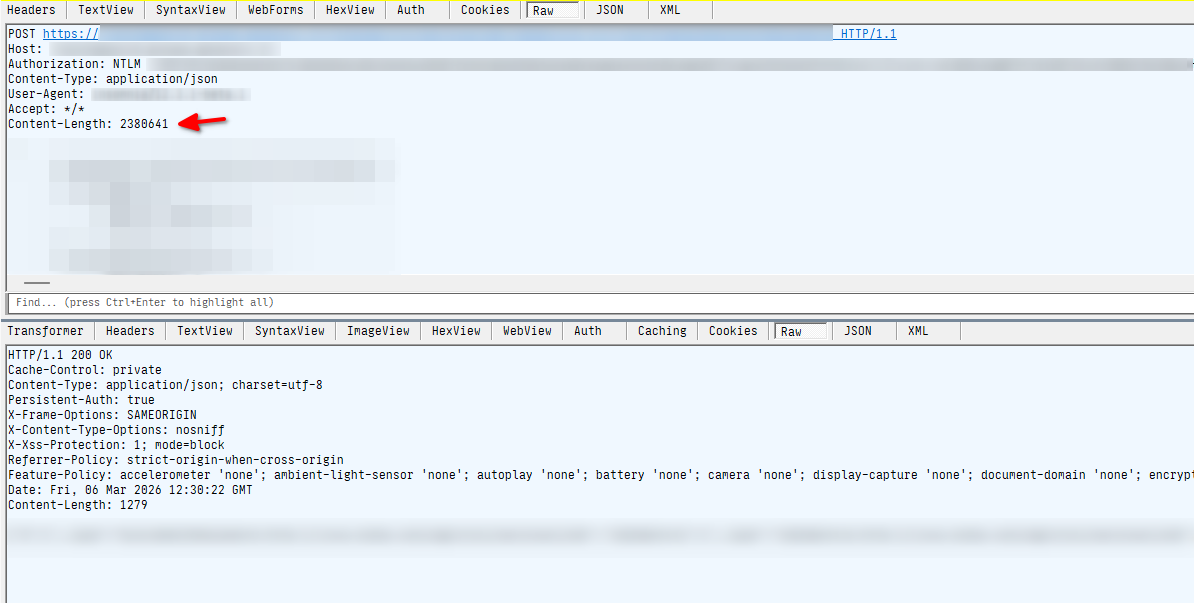

Maybe content-length makes all the difference; here is a successful sequence:


Could it be ?

SoftExpert

NTLM authentication still does not work in 2026.4.0. We suspect the missing content-length to cause the issue; can this be resolved ?
